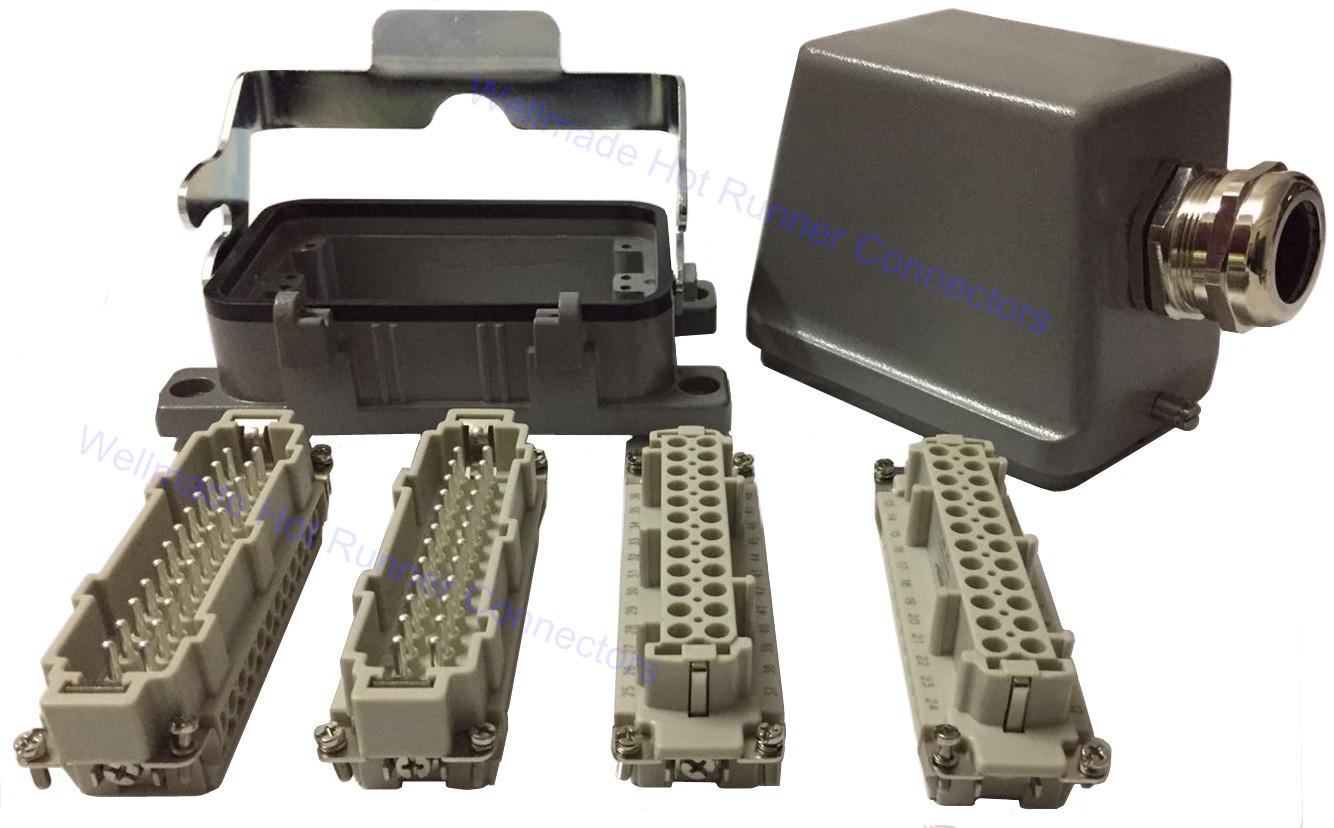

48Pin Hot Runner Connectors,Plastic Mould Connectors Wholesale HE-048-F&M,All kinds of models for your choice

Product Categories

Wellmade IND. Manufacturing(HK) Ltd

Contact Now

Add to Cart

16Pin Female Insert Parameter:

Inserts
Number of contacts	48
Electrical data acc. to EN 61 984
---Rated current	16A
---Rated voltage conductor	500V
---Rated impulse voltage	6kV
---Pollution degree	3
---Pollution degree 2 also	16A 400/690V 6kV 2
Rated voltage acc. to UL/CSA	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-gold plated
Surface	hard-silver plated
Contact resistance	≤1mΩ
Screw terminal
---Wrie gauge	0.14-2.5mm²
---AWG	26-14
---Tightening/Test torque	0.5N·m
---Stripping length	7.0mm

More information,please contact us anytime!
