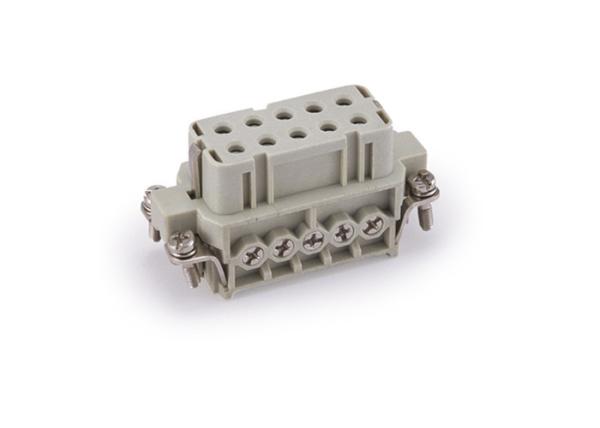

HA-010-F 10Pin Connector screw terminal connector

10Pin female insert parameter:

10Pin female insert

10Pin female insert parameter:

Inserts
Number of contacts	10
Electrical data acc. to EN 61 984
---Rated current	16A
---Rated voltage conductor	250V
---Rated impulse voltage	4kV
---Pollution degree	3
---or	16A 230/400V 4kV 2
Rated voltage acc. to UL	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-gold plated
Surface	hard-silver plated
Contact resistance	≤1mΩ
Screw terminal
---Wrie gauge	1.0-2.5mm²
---AWG	18-14
---Tightening/Test torque	0.25N·m
